NPK Dry Powder to Granules Machine Fertilizer Pellet Rotary Drum Granulator
Product Description:

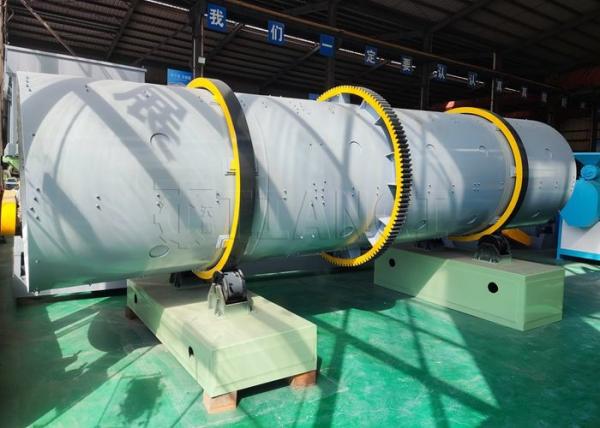

The rotary drum granulator is a new generation of rotary drum granulator developed by our company based on years of experience in fertilizer equipment production. It has the characteristics of beautiful appearance, simple operation, low energy consumption, long service life, uniform drying, and convenient maintenance. It is a relatively advanced granulator. This product is suitable for large-scale production of cold and hot granulation, as well as high, medium, and low concentration compound fertilizers.
Features:
- High working efficiency: the inner lining is made of rubber engineering plastic, the material is not easy to stick to the barrel, and the output is large.
- High granulation rate: there is a small amount of return material, the return material particle size is small, and it can be re-granulated to save costs.
- Rounded shape: with the help of the rotating motion of the barrel, the material particles are squeezed and agglomerated into balls.
- Low moisture content of the finished product: through steam heating, the material temperature is increased, the moisture content of the material after balling is low, and the drying efficiency is improved.
Technical Parameters:
| Model |
Dip angle
(°)
|
Internal diameter
(m)
|
Length
(m)
|
Speed
(r/min)
|
Power
(kw)
|
Capacity
(t/h)
|
Outline dimension
(L*W*H)
|
| ZG1.2*4 |
2-2.5 |
1.2 |
4 |
17 |
5.5 |
1-3 |
4.6*2.2*2.0 |
| ZG1.4*5 |
2-2.5 |
1.4 |
5 |
14 |
7.5 |
3-5 |
4.8*2.8*2.3 |
| ZG1.5*6 |
2-2.5 |
1.6 |
6 |
11.5 |
11 |
5-8 |
7.0*3.2*3.1 |
| ZG1.8*7 |
2-2.5 |
1.8 |
7 |
11.5 |
15 |
8-10 |
8.5*3.5*3.3 |
| ZG2.0*8 |
2-2.5 |
2.0 |
8 |
11 |
18.5 |
10-15 |
9.1*3.6*3.5 |
| ZG2.2*8 |
2-2.5 |
2.2 |
8 |
10.5 |
22 |
15-20 |
9.5*4.4*3.9 |
Applications:
It is suitable for processing powdery materials into spherical particles, and is mainly used for granulating phosphate compound fertilizers, such as monoammonium phosphate, diammonium phosphate, nitrogen-phosphorus-potassium compound fertilizers and other products.
Package and Delivery:
For small single machines, we usually wrap them with protective film and then put them in a sturdy wooden box;
For large equipment or multiple production line equipment, we will place them in containers and secure them with steel wires.
So there's no need to worry about transportation issues.
FAQ
Q: What are your company's advantage ?
A: We are professional fertilizer equipment manufacturer with more than 20 years production experience and 10 years exports experience. We have own factory which can produce high quality equipment with competitive prices.
Q: What information do we need to provide to complete an order ?
A: You should provide us with your fertilizer raw materials and capacity, as well as your production area. Once the quotation content is confirmed, provide us with your destination port.
Q: Do you have customer reviews or case studies available ?
A: Yes, we have many successful overseas cases and customers feedback, such as Uzbekistan, Malaysia, Vietnam, India, Philippines and so on. If you need, you can add my whatsapp number and I will send them to you.
Q: What is your main products ?
A: Our main products include complete equipments of fertilizer production line. There are many types of granulator and some auxiliary equipment (drying&cooling machine, screening machine, coating machine, packaging machine and so on).
Q: How to choose the right fertilizer equipment ?
A: Inder to choose the appropriate equipment, we need to know your fertilizer raw materials and production capacity, so that we can give you a right solution. It’s best for us if you can provide the production area.
